Surface Correction

Tips: Surface Correction.

Hey…, may be you have surface model with broken half or damage, so you can not solidify this surface in pro/Engineers.

Here are tips for correct that surface.

Open your model with damage surface in pro/Engineer wildfire.

Fig.1. damage surface.

Click boundary blend tool (go to insert and click boundary blend) and then pick at first direction field and choose edge pairs then pick second direction field and choose two edge for 2^nd direction reference.

Fig. 1^st direction field and 2^nd direction field

Opposite red edges are edge pairs

After finished correction of broken surface, you can merge with main surface so you can do solidify action.

This is the result.

Feel free to enjoy…

Command please…

Read More......

Pro/Engineer Wildfire - Image Visualization

How to add Image in your model...

After you created model in pro/Engineer like in basic modeling I, you can add an image in your model. Now, first requirement to adding image you must have an image with proportional dimension with your models in pro/E. You can create your image by Image-processing software like Photoshop or CorelDraw, or may be you have been your pictureJ.

TIPS for creating your image: The better the resolution of the image, the easier it will be to match geometry, and give it name by single name without space name.

Here is step to adding image in your model:

1. Open your model which you want to added an image.
2. Select View -> Color and Appearance. In appearance editor dialog box add a color by pressing Plus (+) sign, you can change a color as you wish and then in assignment dropdown list choose surface option and then pick surface which you want to put your picture and press apply button for changing color.

3. Still in appearance editor dialog box select properties and then go to map tab and give checklist sign on bump field. See picture.

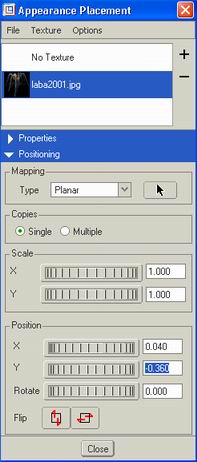

4. Press square button on bump field location on left of checklist. Appearance placement Dialog Box appear, and then press Plus (+) sign to import your picture. Select your picture which just now import.

5. Choose mapping type with planar option and then you can select copies type with single or multiple depend on your design. After applying assignment in appearance editor dialog box. Press close in Appearance placement dialog box.

6. Press apply button in appearance editor dialog box. If position or size does not match with your design, you can scale and positioning or rotate your picture by back to appearance placement dialog box. Your design should look like this picture.

Enjoy….

Tutorial selanjutnya...Feature Pattern di sini anda akan di tuntun dalam membuat pattern pada pola kurva.

Read More......

Pro/Engineer - Basic Modeling II

TeamRevolve Feature

This tool creates a feature by revolving a sketched section around a centerline. Use the Revolve tool as one of the basic creation methods that allows you to create a revolved geometry as a solid or surface, and to add or remove material.

To create a revolved feature, you activate the Revolve tool and specify the feature type, solid or surface. Then you create a sketch that contains an axis of revolution and a section that you want to revolve about the axis. After a valid section is created, the Revolve tool constructs a default-revolved feature and shows a preview of the geometry. You can then change the angle of revolution, switch between a solid or surface, protrusion or cut, or assign a thickness to the sketch to create a "thickened" feature

OK, this is the simple guide to use this tool, let’s try to creating a cylinder by follow this instruction.

1. You should know how to start pro/E and creating a new part by reviewing the Tutorial of Basic Modeling I, follow those commands till step 3, but in this tutorial, give part name by Cylinder.prt.

2. Select Revolve tools and sketching tool will appear in bottom of windows and set axis revolution value with 360, make sure that Revolve as solid was select.

3. Press Sketch tool and choose Front Datum Plane as Sketching Plane and Right datum Plane for Right Orientation and then Press Sketch Button on the dialog.
4. Make sure that we have vertical and horizontal reference to draw.

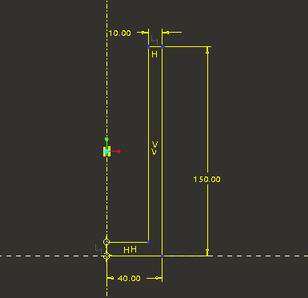

5. Let’s begin section draw using draw tools and try creating sketched section like below picture. Don’t forget to create axis revolution.

6. After you have finished draw and edit the dimension, press OK button and press green checklist button to assign revolve tool.

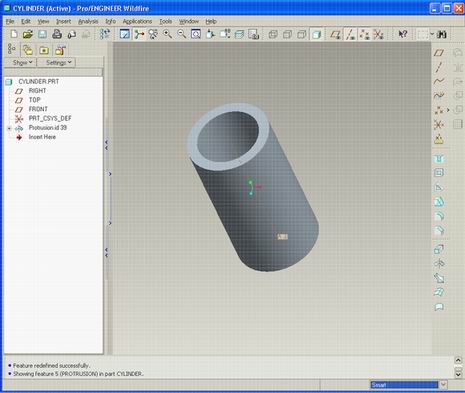

7. Your models should look like this picture.

8. Congratulation you have been finished basic tutorial II. Don’t forget to save your job.

Note: You can find this teory in PTC Help.
This tutorial create by Ibrahim

Read More......

Pro/Engineer - Basic Modeling I

Extrude Feature

Extrusion is a method of defining three-dimensional geometry by projecting a two-dimensional section at a specified distance normal to the sketching plane.

How to Use this tool?

This is step by step to create a Box using Extrude Feature.

1. Run The Program (Pro/Engineer Wild Fire) and then Press Menu File, New.
2. Choose Part Type and fill name part (in this example, I was write Box) in field Name like this Picture.

3. Change the Unit System by Press menu Edit in menu bar and press setup in sub menu and then select Units, if the Units Manager Dialog Option appear choose millimeter Newton Second [mmNs] and press Set.

4. Select Extrude Feature and sketching tool will appear in bottom of windows set a depth value with 50.

5. Press Sketch tool and choose Top Datum Plane as Sketching Plane and Right datum Plane for Right Orientation and then Press Sketch Button.

6. Select Right & Front Datum plane as vertical and horizontal reference.
7. Draw a rectangle by rectangle tools and modify dimension to 50x50 mm by modify tools.
8. If you have finished set dimension, press OK tools and press green checklist button location in right bottom corner to accept model.

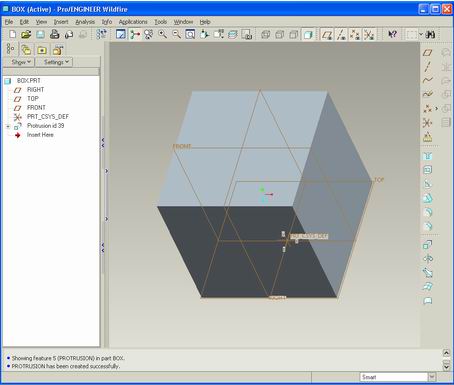

9. Press Ctrl + D to see Standard Orientation, and your model should look like this picture.

10. Save your Model to continue operation in next tutorial.

If you have some question abaout trouble with this tutorial, please contact me, Thanks.

Reference for theory: PTC help.

Read More......

Tutorial MoldFlow Using Plastic Adviser

How to Use Plastic Advisor in Pro/Engineer?

Introduction

The Adviser is designed to help an engineer determine the manufacturability of plastic part designs.

Cavity models

The Adviser allows you to create a model of your part in a CAD package, and then read the model in to the Adviser.

Analysis preparations

For a Plastic Flow analysis, you need to select the polymer and the injection location. Other settings, such as material temperature and pressure, are automatically selected according to the material’s properties, but you can alter them if you wish.

Additional analyses can also be performed in order to investigate other aspects of part design.

Ok, this is an example of using plastic advisor at upper case of charger for NOKIA. Before you try to analyze a model, I hope you should be understand about designing plastic product, including how to creating rib, how about draft angle, Round Corner, Thickness and other criteria for plastic design.

Step bye Step to Run Plastic Adviser.

Ok, this is the step by step using Plastic Adviser within Pro/Engineer. Enjoy it…

Cavity Model

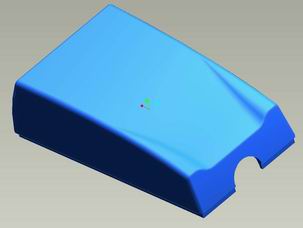

The first Requirements to run Plastic Adviser are built a model as Cavity. If you have finished your plastic model, you can run Plastic Adviser with the following some ways:

• Click Application in Menu Bar and then choose Plastic Adviser -> middle click to ignore set injection location in order to determining best injection location in plastic adviser Windows that will appear for a few minutes after you click on middle button.

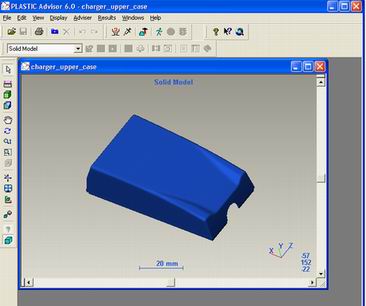

Plastic Adviser Windows

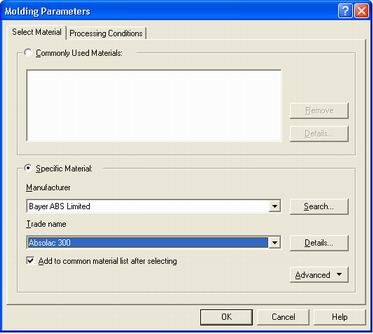

• After Plastic Adviser Windows was appear, you must set Molding Parameters Such as Material Type, Material Operating Temperature, Mold Temperature, Injection Pressure by click Adviser on Menu Bar and choose molding parameter, and then molding parameters dialog will be appear. For Select Material, you must set plastic manufacturer and choose your material. And then set mold temperature and Injection Pressure in Processing Condition Tab. In this case, I try to use Bayer ABS Limited as Manufacturer and Absolac 300 As trade name with Mold Temperature (60^oC), Melt Temp (225 ^oC), Injection Pressure( 250Mpa), Machine Clamp Open Time (3 sec). See this Picture.

Molding Parameter

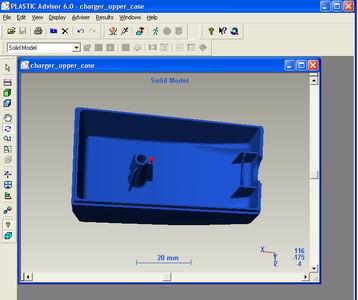

• Set Injection Location, Please Determine the best location for placement gate. Click Adviser and choose Pick Injection Location and then click where you want to set best location for gate in the cavity model.

Injection Location

• Run Analysis; you can select type of analysis based on your needed bye click Adviser -> click Analysis Selection and Then you add check list for type an analysis. This is checking for flow analysis.

Analysis Selection

• Result.

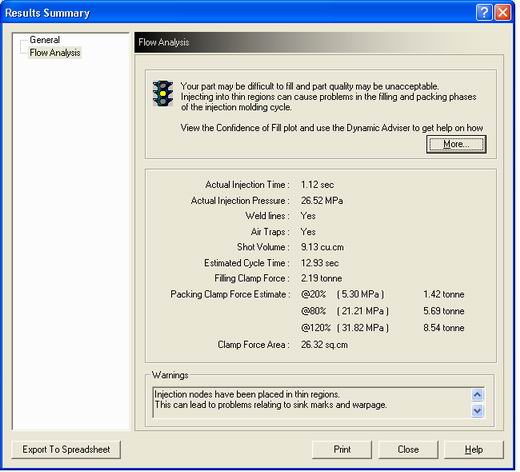

Result Summary

• You can read result under result menu bar and then you can show type of analysis result. This is sample Pressure drop result.

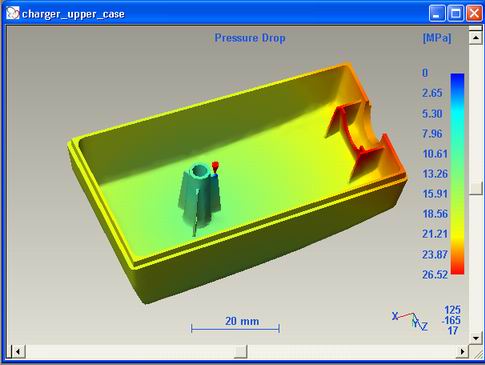

Sample Result : Preswsure Drop

• You can view analysis type and solving problem if there are some bad characteristic.

Results

After the Plastic Flow analysis has finished, you can look at the Confidence of Fill result, which is derived from the Fill Time, Injection Pressure, Pressure Drop and Flow Front Temperature results.

A green area has a high confidence rating yellow indicates a medium confidence rating, while red shows a low confidence rating.

Read the Confidence of Fill advice for suggestions on improving a medium or low result. If the Confidence of Fill result indicates problems, look at the other results to find the reason for the low or medium confidence of fill.

If the Confidence of Fill result shows any molding problems, look at the pressure and temperature results to identify where the problem is coming from. After looking at the Confidence of Fill, you should study the air trap and weld line results to find other possible molding problems.

You can then review the inputs and try to resolve any problems. Areas on the part that show low or medium confidence of fill may need to be redesigned or a new material selected for the part to fill.

Once you are confident that the part will fill, you can check the Quality Prediction result, which estimates the expected quality of the part's appearance. To find out more information and possible solutions to any implied problems, use the same methods you used for investigating the Confidence of Fill result. You can also use other analyses available to investigate and solve design problems.

Reference : PTC Help
Tutorial & Model by Ibrahim

Read More......

TUTORIAL

pro|Engineer Wild Fire


Starting now, i will help you for all Pro/Engineer User to provide a user guide .
Above picture is a simple model and try to maximize usefull of Pro/Engineer.

Beside that i will expose another software that support for engineers like list below:

1. Pro|Engineer
2. ANSYS
3. NASTRAN
4. Photoshop
5. CorelDRAW
6. AutoCAD
6. PHP

Read More......

Engineering Analysis

Simulation Wind Tunnel Test at CARS

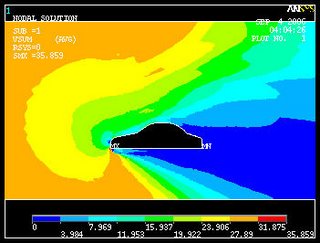

This is Nodal Solution With Velocity 30 m/s

Distribution of Total Velocity (VSUM)



VECTOR

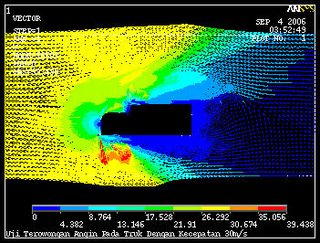

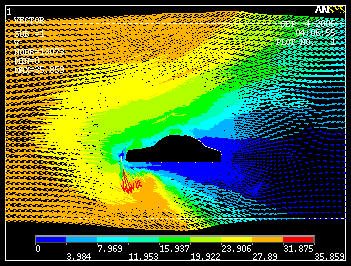

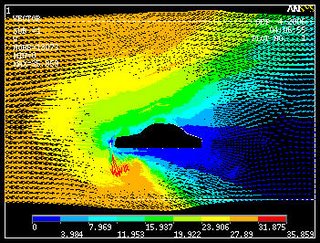

This is Vector Result for Dsitribution of Total Velocity where is the red color in picture is the maximum velocity with range value is 31 - 35.85 m/s. Low pressure around red color is effect of high velocity, we know that air move from high pressure to low pressure.

Perhatikan pula ketika anda berada pada bus dengan kecepatan tinggi dan misalnya tiba2 anda secara ekstrim kencing di samping pintu, hati-hati bisa2 anda basah oleh air kencing sendiri karena akan berbalik ke arah dalam hik2...(makanya yang sopan mas)

This content still construction

TRACE

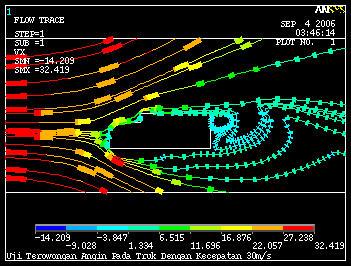

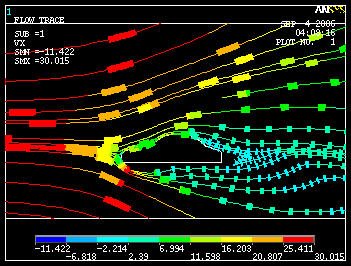

Nah yang satu ini adalah Trace dari kecepatan searah sumbu x atau Vx, perhatikan pada bagian belekang model, anda bisa melihat aliran udara yang berputar (turbulen istilahnya) lihat pada bagian belakang model sedan , daerah turbulensinya sedikit..


Simulasi ini juga bisanya di gunakan untuk medesain faktor bentuk dari kendaraan dengan kecepatan tinggi untuk desain aerodinamis...

Jika anda perhatikan lagi, bentuk muka pesawat memiliki hidung yang halus dan runcing (round lah bukan square) itu untuk mengurangi resistansi udara.

Anda juga bisa perhatikan moncong depan kereta api kecepatan tinggi misalnya yang di jepang dengan kecepatan di atas 500 km/jam lonjong elips (apa namanya yaa...?) hal tersebut selain untuk mengurangai hambatan udara juga untuk mengindari bunyi tabrakan udara yang keras ketika kendaraan keluar dari terowongan, bayangkan kalau kereta api dengan kecepatan di atas 500 km/jam dengan bentuk moncong kotak, bakalan keras bunyi tabrakan udaranya...

Read More......

Graphic Design

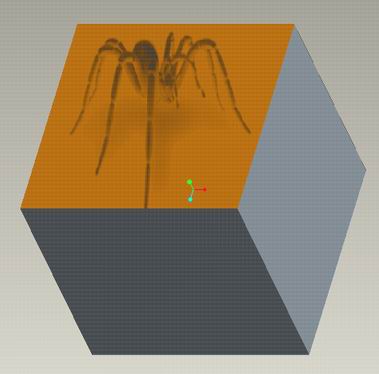

Adding Your Image in your models in Pro/Engineer






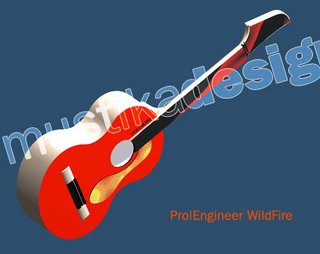

Hiii, This is the simple Aplication use tool image color in Pro/Engineer.
You Can find how to build this tutorial using pro/Engineer in the next article.

Read More......

Construction Design

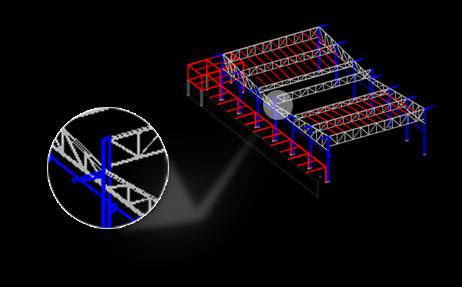

This is my Project for Steel Construction Building in PT. Metavisi Sentra Integra, my task in this project is Drafting, Cost Estimation, Purchasing All Materials, and Supervise in manufacturing its Construction.

Read More......

PortFolio Design

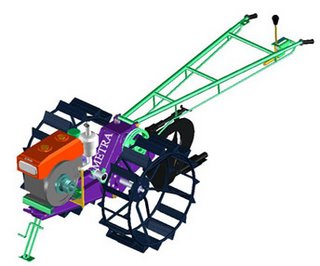

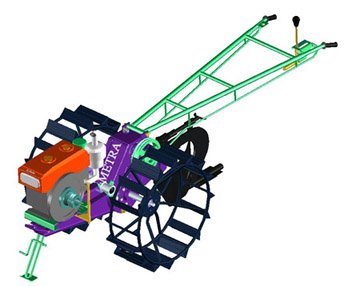

Hand Tractor METRA V10 Full Gear Tipe Banting 8.5 -10 HP

Modelling using Pro/Engineer

This is my first prototype, Full Welding Gearbox. How to create this models? You will find the answer in next article step by step modeling using pro/Engineer.

http://widgets.outbrain.com/FeedFlareUnit.xml

Read More......

Engineering Design

Plant Design

Maize Drying System and Its Packaging with Capacity 10-20 Ton/Batch.

Process Plan..
Still Convert to English

Ket gambar:

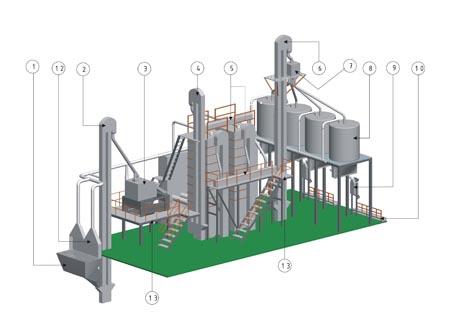

(1) Hopper, (2) Bucket Elevator 1, (3) PreCleaner Machine, (4) bucket Elevator, (5) Blade Conveyor, (6)Bucket elevator 3 tinggi hampir 13 meter tembus atap, (7) Saluran Pembagi, (8)Silo, (9) Baging Sclae, (10) Conveyor, (12) Penghisap Debu.
